Precision
16mm System
SL16M
A New
Benchmark
In Integral Blinds

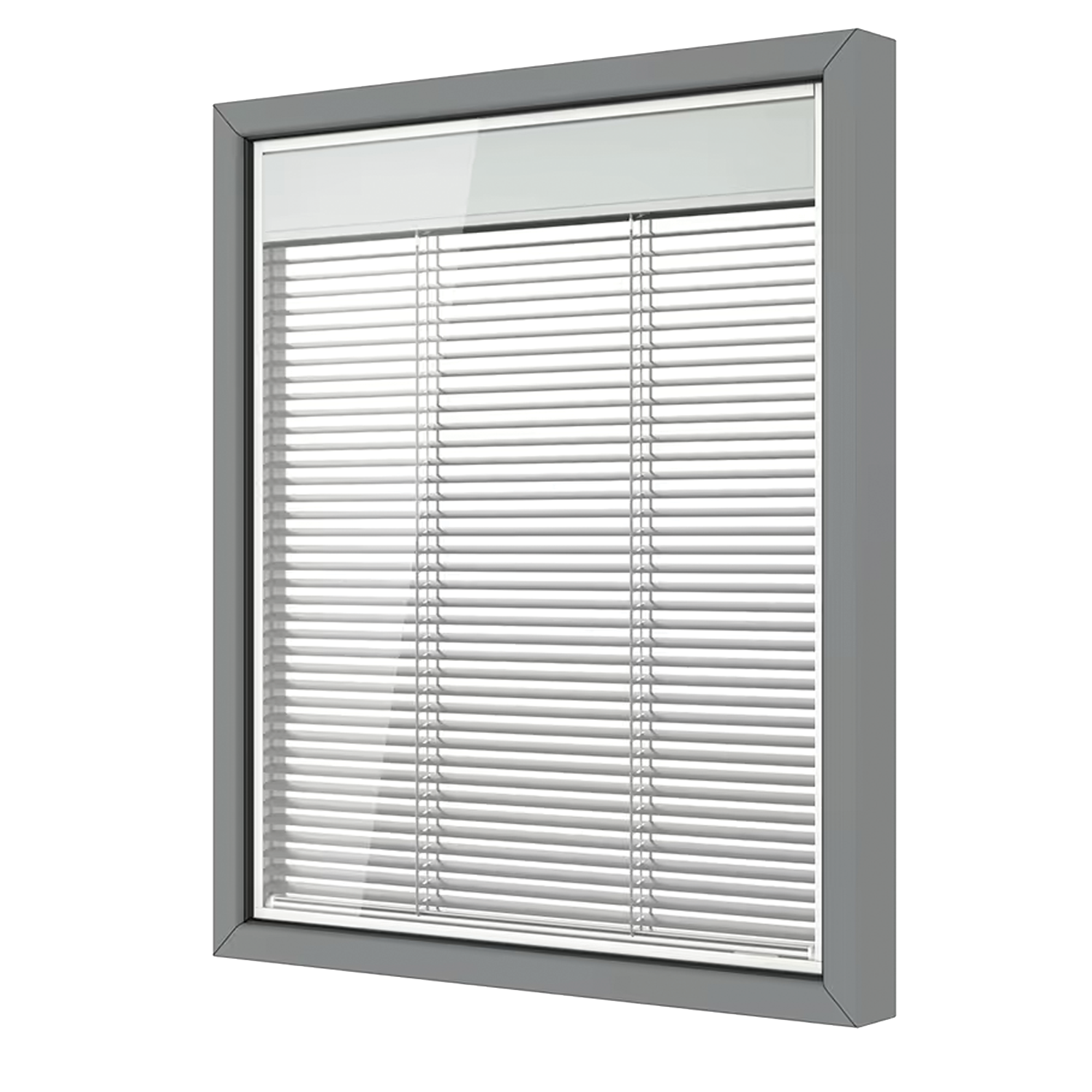

A premium integral blind solution designed to operate seamlessly within a 16mm insulating glass unit. The SL16S system delivers smooth manual control, refined aesthetics, and long-term performance all fully encapsulated within the glazing.
Engineered for
flexibility
Perfectly suited for applications where space is limited, the SL16M allows for the integration of a motorised blind within a standard double glazed unit, without compromising on performance or appearance.
Ideal for:
- Applications requiring slim glazing profiles
- Retrofitting into existing insulating glass units
- Integration within double or triple glazing configurations
- Projects requiring discreet, low-maintenance shading solutions
Colours Available
SLATS
S102
WHITE
WHITE
S149
CREAM
CREAM
S157
GREY
GREY
WARM EDGE SPACE BAR
RAL 9005
(STANDARD)
(STANDARD)
RAL 7035
(OPTIONAL)
(OPTIONAL)
Feasibility Chart
0.00
0.50
1.00
1.50
Area (in m²)
(Max Area)
| Max A: 1.50 sqm | Max W: 1000mm | Max H: 1500mm |
| Possible Dimensions - Max area: 1.50 sqm | |
|---|---|
| Width from 300 to 359mm | Max Height: 1000mm |
| Width from 360 to 1300mm | Max Height: 1500mm |
Features &
Benefits
- Internal Motorised Operation
- Energy Efficient Warm Edge Technology
- Precision Self-Levelling System
- Advanced Synchronised Control Technology
- Smooth, Controlled Slat Movement
6 CONTROL
SYSTEMS
All the benefits of ScreenLine, each with its own peculiarities: manual and motorised blinds, operated via wall switch, remote control or BMS system, antimicrobial technology and much more
